Slide-stax PORTABLE TRANSFER CONVEYORS
DRAMATICALLY REDUCE YOUR FREIGHT EXPENSES AND INCREASE YOUR OPERATING FLEXIBILITY WITH THOR SLIDE-STAX™ PORTABLE TRANSFER CONVEYORS. OUR HIGHWAY PORTABLE PACKAGE CONSISTS OF THREE SLIDE-STAX CONVEYORS THAT ARE HOT-DIP GALVANIZED FOR LONG-TERM RUST AND CORROSION PREVENTION.
WHY CHOOSE THE STAX?
REDUCE FREIGHT
Reduce freight by transporting three conveyors in one haul.
High-end components such as CEMA C idlers and CLASS 2 reducers make these conveyors very durable.
VERY DURABLE
VERSATILE
Manually adjustable legs for versatility.
MODELS
SC 50x36
0800
36 inch belt
50 ft
800 stph
SC 70x36
0800
36 inch belt
70 ft
800 stph
SC 70x42
1200
42 inch belt
70 ft
1200 stph
SF
| STANDARD FEATURES
Belt Splice:
HOT Vulcanized
All belt splices are hot vulcanized in house to ensure greater belt life for all of our end users. Vulcanizing also prolongs the life of the belt scraper. Thor Global uses premium quality and high tensile strength belting.
Contactors: IEC
Thor Global is very aware that bulk material handling environments can be extremely harsh on electrical components. This is why the conveyor uses over sized IEC contactors for all applications to provide a more robust system.
Gear Reducers: CLASS 2
Dodge, always CLASS 2 with no need to upgrade from CLASS 1.
Idlers: CEMA C
CEMA C idlers are standard on all machines and are intended to last twice as long as CEMA B. Thor uses nothing less than the best!
Safety Guarding
Galvanized steel mesh guarding surrounding the main conveyor and safety guards at all pinch points provide ultimate protection for all operators and personnel within close range of the conveyor.
Steel: 60,000 psi
Thor Global uses 60,000 psi yield strength steel versus the industry norm of 45,000 psi yield strength for all HSS (Hollow Structural Section) tubing. This FINER grain steel provides additional strength without additional weight.
Tail Pulley Kicker Bar
A kicker bar is attached to the tail pillow block bearings of the inner and outer conveyors to keep material off the pulley, which prevents tracking and belt damage.
OF
| OPTIONAL FEATURES
Colour: Custom
We understand the importance of corporate image, so we at Thor Global will always try to meet the specific requests of our customers as best as we can.
Galvanizing: Hot-Dip
Realizing that some customers have to work in harsh environments with corrosive materials, Thor is the first and only manufacturer to provide a unit that can withstand your tough environment. Machines are fully Hot-Dip galvanized before assembly. Hot-Dip Galvanizing relieves the internal stresses of welded components, providing a fully stress relieved structure. Zinc has a very high relative corrosion resistance.

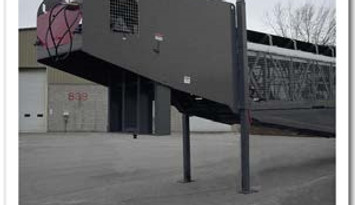

Transport Landing Legs: Hydraulic complete with 12v power pack
Hydraulic landing legs provide the same benefits as regular landing legs with the added flexibility of lowering the conveyor into operating mode after it is unhooked from the transport truck. Hydraulic landing legs may also be used to raise the conveyor onto a transport truck.
HOPPER LINING
Specialty hopper lining is recommended for unique applications where material is either very sticky or abrasive. When required, this feature will improve the longevity of the hopper and the flow of material.
IMPACT BED
An impact bed is a system that is designed to resist the shock of a heavy or high impact product. In addition to promoting the longevity of the belt, an impact bed will significantly reduce vibrations.
