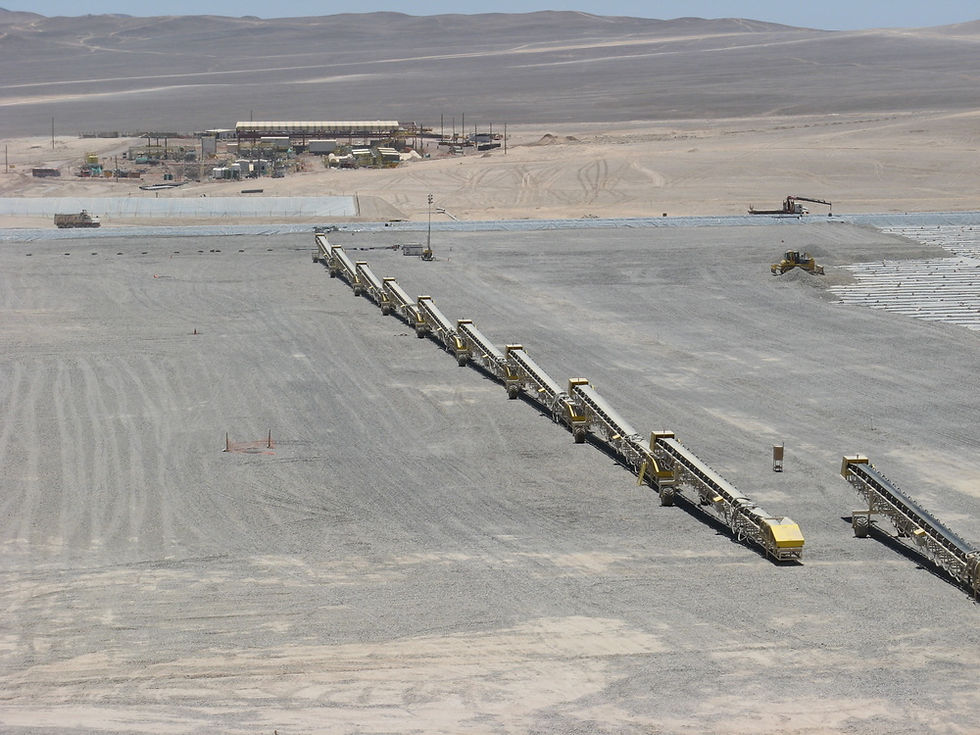

PORTABLE TRANSFER CONVEYOR
JUMP/GRASSHOPPER
THOR OFFERS A WIDE RANGE OF PORTABLE TRANSFER CONVEYORS TO COST EFFECTIVELY SUIT ANY APPLICATION. ALL TRANSFER CONVEYORS HAVE A HEIGHT ADJUSTABLE RANGE OF 8FT AT THE AXLE.
WHY CHOOSE THE LINKS?
TC 50x36
0500 | 0800 | 1000
36 inch belt
50 ft
500 stph | 800 stph | 1000 stph
TC 70x36
0500 | 0800 | 1000
36 inch belt
70 ft
500 stph | 800 stph | 1000 stph
TC 80x36
0500 | 0800 | 1000
36 inch belt
80 ft
500 stph | 800 stph | 1000 stph
T100 50x36
0500 | 0800 | 1000
36 inch belt
100 ft
500 stph | 800 stph | 1000 stph
TC 120x36
0500 | 0800 | 1000
36 inch belt
120 ft
500 stph | 800 stph | 1000 stph
TC 150x36
0500 | 0800 | 1000
36 inch belt
150 ft
500 stph | 800 stph | 1000 stph
TC 80x36
0500 | 0800 | 1000
42 inch belt
80 ft
1200 stph | 1500 stph
TC 100x42
1200 | 1500
42 inch belt
100 ft
1200 stph | 1500 stph
​TC 120x42
1200 | 1500
42 inch belt
120 ft
1200 stph | 1500 stph
SF
| STANDARD FEATURES
%20%26%20Tensioning%20system.jpg)
BELT SCRAPERS & TENSIONING SYSTEM
PATENTED
Situated at the discharge end on both conveyors, Thor’s exclusive twin-edge belt scrapers are designed for a cleaner return and longer belt life. All scrapers are manufactured using a tough ¾” thick, 10” wide urethane blade combined with an extension spring. The blade is reversible for double lifespan. The PATENTED belt scraper tensioning system provides maximum control and better usage of the blade.
Belt Splice:
HOT Vulcanized
All belt splices are hot vulcanized in house to ensure greater belt life for all of our end users. Vulcanizing also prolongs the life of the belt scraper. Thor Global uses premium quality and high tensile strength belting.
Contactors: IEC
Thor Global is very aware that bulk material handling environments can be extremely harsh on electrical components. This is why the conveyor uses over sized IEC contactors for all applications to provide a more robust system
Gear Reducers: CLASS 2
Dodge, always CLASS 2 with no need to upgrade from CLASS 1.
Idlers: CEMA C
Nordstrong CEMA C idlers are standard on all machines. They are intended to last twice as long as CEMA B. Thor uses nothing less than the best!
Safety Guarding
PVC coated wire mesh guarding surrounding the main conveyor and safety guards at all pinch points provide ultimate protection for all operators and personnel within close range of the conveyor.
Steel: 60,000 psi
Thor Global uses 60,000 psi yield strength steel versus the industry norm of 45,000 psi yield strength for all HSS (Hollow Structural Section) tubing. This FINER grain steel provides additional strength without additional weight.
OF
| OPTIONAL FEATURES
RECEIVING Chute: Custom
A customized box shaped design has tapered sides with a wider feed opening. Other custom designs are available upon request.
Colour: Custom
We understand the importance of corporate image, so we at Thor Global will always try to meet the specific requests of our customers as best as we can.
Contactors & Starters: NEMA
NEMA rated starters and contactors are available upon request.
Galvanizing: Hot-Dip
Realizing that some customers have to work in harsh environments with corrosive materials, Thor is the first and only manufacturer to provide a unit that can withstand your tough environment. Machines are fully Hot-Dip galvanized before assembly. Hot-Dip Galvanizing relieves the internal stresses of welded components, providing a fully stress relieved structure. Zinc has a very high relative corrosion resistance.
SPF
| SPECIALTY FEATURES
​Belt Alignment Sensor
A belt alignment sensor may be applied in connection with the PLC to monitor the belt alignment and alert the operator when an adjustment is required to further extend belt longevity. Also known as belt tracking.
Belt Covers: Patented
Thor Global’s patented belt covers can be easily installed into any existing conveyor system. Ultra lightweight galvanized steel structural tubing and single bolt connections make these conveyor covers easy to handle, remove and assemble. Individual spring tensioning systems keep the covers secure and accessible for maintenance and repair. Lightweight UV resistant polyurethane material dramatically reduces wind load by 80%. Provides excellent dust control.
